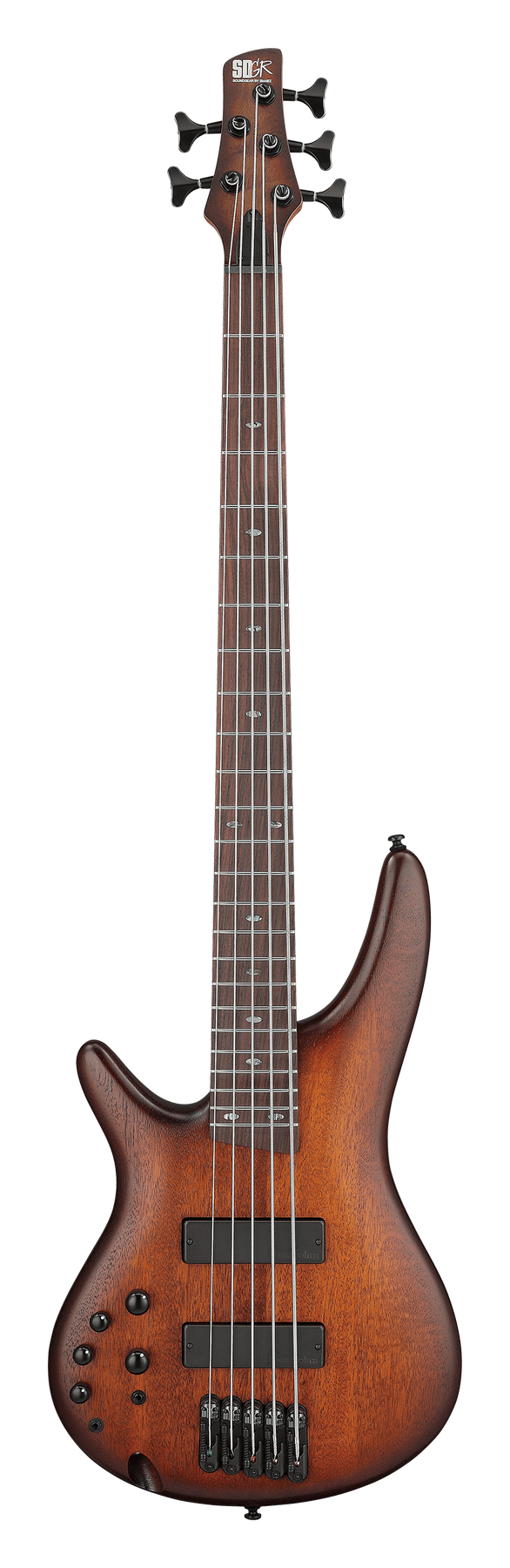

Ibanez SR505AL photos
Photo 1 of 12
Mahogany Brown Burst Low Gloss
Finishes
Mahogany Brown Burst Low Gloss
About this model
Rosewood fretboard: Rosewood provides a well-balanced solid tone with a focused mid range.
5pc Roasted Maple/Walnut neck: The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.
Medium frets: Medium sized frets enhance the accuracy of your notes.
Okoume body: The Okoume body provides a bright and solid sound.
Bartolini® BH2 pickups: The Bartolini® BH2 pickups provide a tight bottom-end, punchy mid-range, and smooth response. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response.
MR5S bridge: The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch: Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones. Precision tonal control, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone control knob becomes the global tone control for the passive circuit.
Core specs
- Brand
- Ibanez
- Model
- SR505AL
- Family
- SR
- Series
- Standard
- Strings
- 5
- Body style
- SR
- Body material
- Okoume body
- Top
- Unknown
- Neck material
- 5pc Roasted Maple/Walnut neck
- Neck profile
- SR5
- Neck joint
- bolt-on
- Fingerboard
- Rosewood
- Scale length
- 34"
- Nut width
- 45mm
- Fingerboard radius
- Unknown
- Frets
- 24
- Fret size
- Medium frets
- Bridge
- MR5S bridge
- Tuners
- Unknown
- Pickup config
- HH
- Pickups
- Bartolini® BH2 neck pickup / Bartolini® BH2 bridge pickup
- Controls
- Volume / balancer / 3-band EQ
- Electronics
- active
Extended specsShow
- Switching / taps
- EQ bypass / mid frequency (OEM)
- Battery
- 9V
- Nut material
- Unknown
- Hardware finish
- Black
- Inlays
- Abalone oval inlay
- Pickguard
- Unknown
- Factory strings
- .045/.065/.085/.105/.130
- Case / gig bag
- Unknown
- Country of origin
- Unknown
- MSRP (USD)
- Unknown
- LH finishes offered
- Mahogany Brown Burst Low Gloss
- Body finish type
- Unknown
- Multi-scale
- false
- String spacing
- 16.5mm
- Preamp
- Ibanez Custom Electronics 3-band EQ w/EQ bypass switch (passive tone control on treble pot), 3-way Mid frequency switch
- Orientation note
- Unknown
