Charvel Pro-Mod DK24 HH 2PT CM photos
Photo 1 of 5

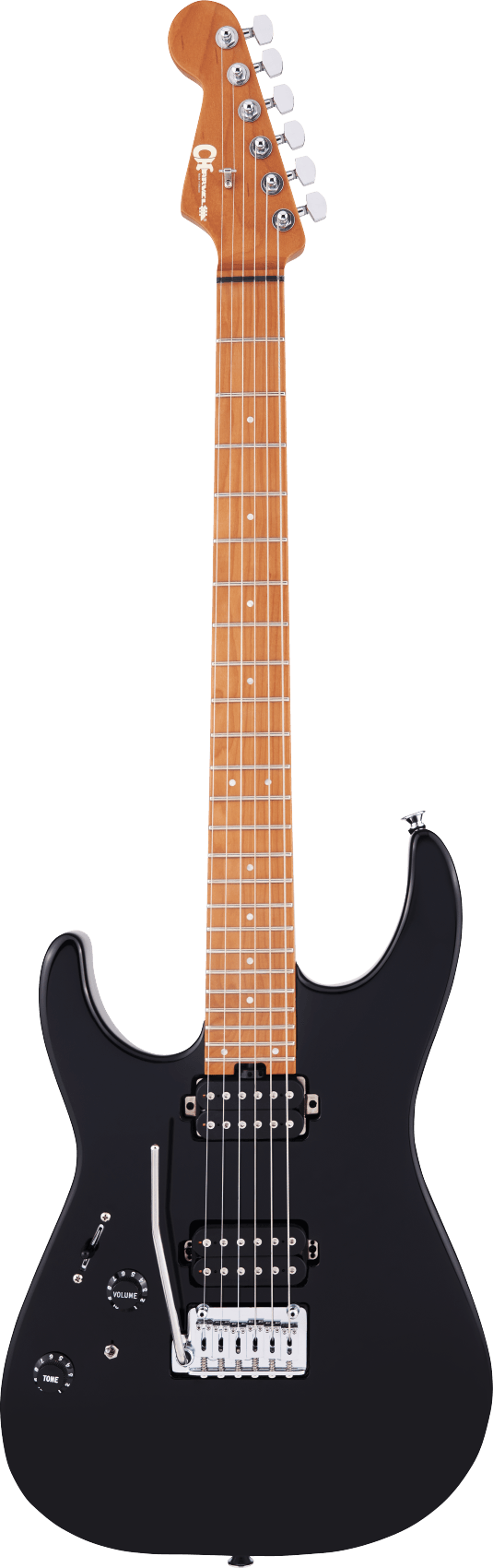

Front · Gloss Black
Finishes
Gloss Black
About this model
Featuring a sculpted shredder's cut heel and a scalloped lower back bout for easy upper access to the fingerboard, the alder body in the classic Dinky® style is cloaked in either a Gloss Black or Satin Shell Pink finish. The bolt-on caramelized maple "speed" neck features graphite reinforcement, silky-smooth hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12"-16" compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut. Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this lefty guitar features an HH pickup configuration consisting of a direct mount custom Seymour Duncan® Full Shred™ TB-10 bridge pickup and direct mount custom Seymour Duncan Alnico II Pro™ APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows. Blending sophisticated style with assertive tone, the Pro-Mod DK24 HH 2PT CM LH also offers premium modern features such as a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, Charvel-branded locking tuners, chrome hardware and more.
Core specs
- Brand
- Charvel
- Model
- Pro-Mod DK24 HH 2PT CM
- Family
- Unknown
- Series
- Unknown
- Body style
- Dinky (DK24)
- Body material
- Alder
- Top
- N/A (solid body; no separate top)
- Neck material
- Caramelized Maple
- Neck profile
- Speed Neck with Rolled Fingerboard Edges
- Neck joint
- bolt-on
- Fingerboard
- Caramelized Maple
- Scale length
- 25.5" (648 mm)
- Nut width
- 1.6875" (42.86 mm)
- Fingerboard radius
- 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Frets
- 24
- Fret size
- Jumbo
- Bridge
- Gotoh® Custom 510 Tremolo
- Tuners
- Charvel®-Branded Die-Cast Locking
- Pickup config
- HH
- Pickups
- Neck: Custom Seymour Duncan® Alnico II Pro™ APH-1N / Bridge: Seymour Duncan® Full Shred™ TB-10 (OEM); some retailer pages list SH-10B bridge
- Controls
- Volume (with 500K EVH® Bourns® Low Friction Potentiometer), No-Load Tone
- Switching
- 5-Position Blade + 2-Way Mini Toggle (Series/Parallel)
Extended specsShow
- Nut material
- Graph Tech TUSQ XL
- Hardware finish
- Chrome
- Tailpiece
- n/a (tremolo)
- Inlays
- 4mm Pearloid Dot
- Pickguard
- None
- Factory strings
- Nickel Plated Steel (.009-.042 Gauges)
- Case / gig bag
- Unknown
- Country of origin
- Mexico
- MSRP (USD)
- Unknown
- LH finishes offered
- Gloss Black, Satin Shell Pink
- Body finish type
- Gloss (Gloss Black) / Satin (Satin Shell Pink) — finish-dependent
