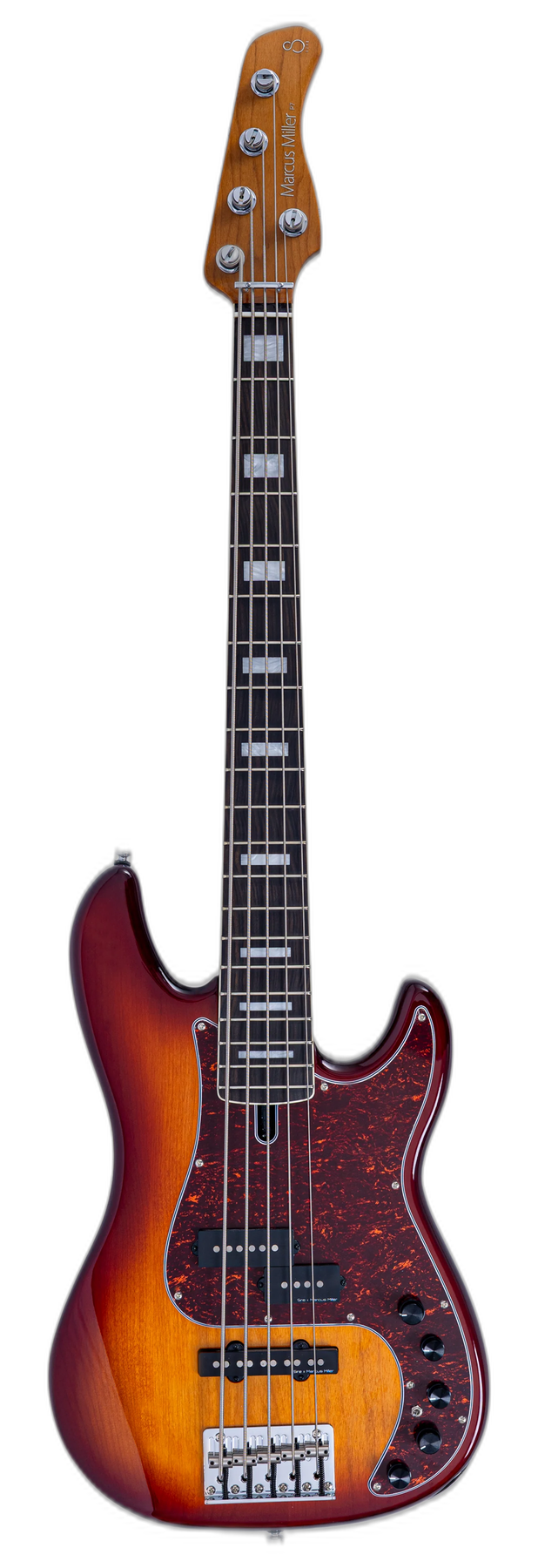

Marcus Miller P7 New Gen 5-String LH

About this model

Sire’s Hybrid PJ Bass, Refined with New Gen Updates The new Sire P7 New Gen redefines the traditional P-style platform with enhanced comfort, improved balance, and a wider, more controllable tonal range. Thoughtful New Gen updates bring modern performance and flexibility while preserving the familiar feel and character players expect.

- Features

- Specification

- Find a Dealer

REFINED P-STYLE BODY WITH NEW GEN NECK SYSTEM

The P7 New Gen features Sire’s the Edgeless™ and updated New Gen C-shape neck and stainless steel frets for improved comfort and durability, while a traditional wide P-style nut (42 mm 4-string / 47.5 mm 5-string) and lightweight open-gear tuners ensure classic feel with better balance.

SUPER-PJ PICKUP SYSTEM

The Marcus Super-PJ Revolution pickups deliver powerful P-style punch with added J-style clarity, paired with the Marcus Heritage-3 preamp featuring mid-frequency control and a dedicated active/passive mini-toggle for instant passive access without changing settings.

MODERN HARDWARE & UPDATED CONTROLS

The Modern-S Bass Bridge enhances sustain and string stability, while the Aluminum control knobs add a premium look and feel. The revised dual-pot volume/tone and mid/frequency layout delivers wide tonal control without added complexity.

P7 CONTROL LAYOUT

1. Volume — Top Knob

Turn toward Open to increase the volume. Turn toward Close to decrease the volume. When turned fully in the Close direction, the volume will be muted.

2. Master Tone — Bottom Knob

Turn toward Close for a darker tone. Turn toward Open for a brighter tone.

3. Pickup Balancer

The center position is the basic position. In this position, both the neck and bridge pickups are used equally. Turn toward Neck to increase the neck pickup signal. Turn toward Bridge to increase the bridge pickup signal. When turned fully toward Neck, only the neck pickup is used. When turned fully toward Bridge, only the bridge pickup is use. Note: The following EQ controls work in Active Mode.

4. Treble

Turn toward Boost to increase the treble range. Turn toward Cut to decrease the treble range. The center position is the basic position.

5. Middle — Top Knob

Turn toward Boost to increase the middle range. Turn toward Cut to decrease the middle range. The center position is the basic position.

6. Middle Frequency — Bottom Knob

Use this knob to select the mid-frequency range affected by the Middle control. Turning the knob changes the selected mid-frequency point. The Middle Frequency control takes effect when the Middle control is boosted or cut.

7. Bass

Turn toward Boost to increase the bass range. Turn toward Cut to decrease the bass range. The center position is the basic position.

8. Active / Passive Switch

Use this switch to select between active and passive operation. Set the switch to Active to use the onboard preamp and EQ controls. Set the switch to Passive to bypass the active preamp and use a more natural passive sound.

Basic Use

For a balanced sound, set the Pickup Balancer in the center position and keep the EQ controls near the middle position. To emphasize a brighter and tighter tone, turn the Pickup Balancer toward the bridge pickup and increase the Treble slightly. To emphasize a warmer and fuller tone, turn the Pickup Balancer toward the neck pickup and increase the Bass slightly. For more precise tone shaping, adjust the Middle Frequency first, then use the Middle control to cut or boost the selected frequency range. Use Active mode when you want more control over the EQ. Use Passive mode when you want a simpler and more natural tone.

BODY

Body Material: North American Alder Body Shape: Sire P Type Body Color: TS (Tobacco Sunburst), AWH (Antique White), Dark Forest, TP (Tide Pool), Sunshine Yellow

NECK

Neck Material: Hard Maple (Dark Forest, Sunshine Yellow) and Roasted Hard Maple (TS, AWH, TP) Neck Shape: C-Shape (New Gen) Scale: 34" Fingerboard Material: Hard Maple (Dark Forest, Sunshine Yellow), Roasted Hard Maple (TP) and Ebony (TS, AWH) with Edgeless™ (Rolled Fretboard Edges) Fingerboard Radius: 9.5" Frets: 2.4 mm Medium, Stainless Fret wire String Nut: Bone Nut, 47.5mm Width Inlay: White Pearloid Block (TS, AWH, TP) and Black Block (Dark Forest, Sunshine Yellow) Binding: IV 1ply (TS, AWH, TP) and BK 1ply (Dark Forest, Sunshine Yellow) Neck Joint: Four Bolt Steel Plate

ELECTRONICS

Pickup: Marcus Super-PJ Revolution Pickup set Preamp: Marcus Heritage-3 with Middle Frequency Control Controls: Volume/Tone ( Dual Pot ) | Pickup Blender | Treble | Middle/Middle Frequency (Dual Pot) | Bass, Mini Toggle (Active/Passive) Knobs: Aluminum Knob in Black

HARDWARE

Bridge: Marcus Miller Modern-S Bass Bridge Tuning Gear: Premium Light Weight Open Gear Hardware Finish: Chrome Pickguard: BK 3ply (Dark Forest, Sunshine Yellow) and Tortoise (TS, AWH, TP)

(function(p,r,o,g,u,s){var a=p.createElement(r);var b=`?shop=sireguitarsusa.myshopify.com&lang=${typeof Shopify!=="undefined"?Shopify.locale:""}&tags=${g}&city=${u}&groups=${s}`;a.src=o+b;a.allowfullscreen=!0;a.allow="geolocation";a.frameborder=0;a.setAttribute("frameBorder","0");a.setAttribute("allowfullscreen","");a.width="100%";a.height="500px";p.querySelector("#progus-store-locator").appendChild(a);window.addEventListener("message",(e)=>{if(e.data.pslheight){a.style.height=e.data.pslheight}})})(document,"iframe","https://sl-widget.proguscommerce.com/main")

Core specs

Brand

Sire

Model

Marcus Miller P7 New Gen 5-String LH

Family

P7

Series

P7 New Gen

Strings

5

Body style

P-style hybrid PJ

Body material

North American Alder

Top

N/A (no separate top listed)

Neck material

Hard Maple or Roasted Hard Maple (finish-dependent)

Neck profile

C-Shape (New Gen)

Neck joint

bolt-on

Fingerboard

Hard Maple / Roasted Hard Maple / Ebony (finish-dependent)

Scale length

34"

Nut width

47.5mm

Fingerboard radius

9.5"

Frets

Unknown

Fret size

2.4 mm Medium Stainless

Bridge

Marcus Miller Modern-S Bass Bridge

Tuners

Premium Light Weight Open Gear

Pickup config

PJ

Pickups

Marcus Super-PJ Revolution set

Controls

Volume/Tone, Blender, Treble, Middle/Freq, Bass + Active/Passive mini toggle

Electronics

active-passive switchable
