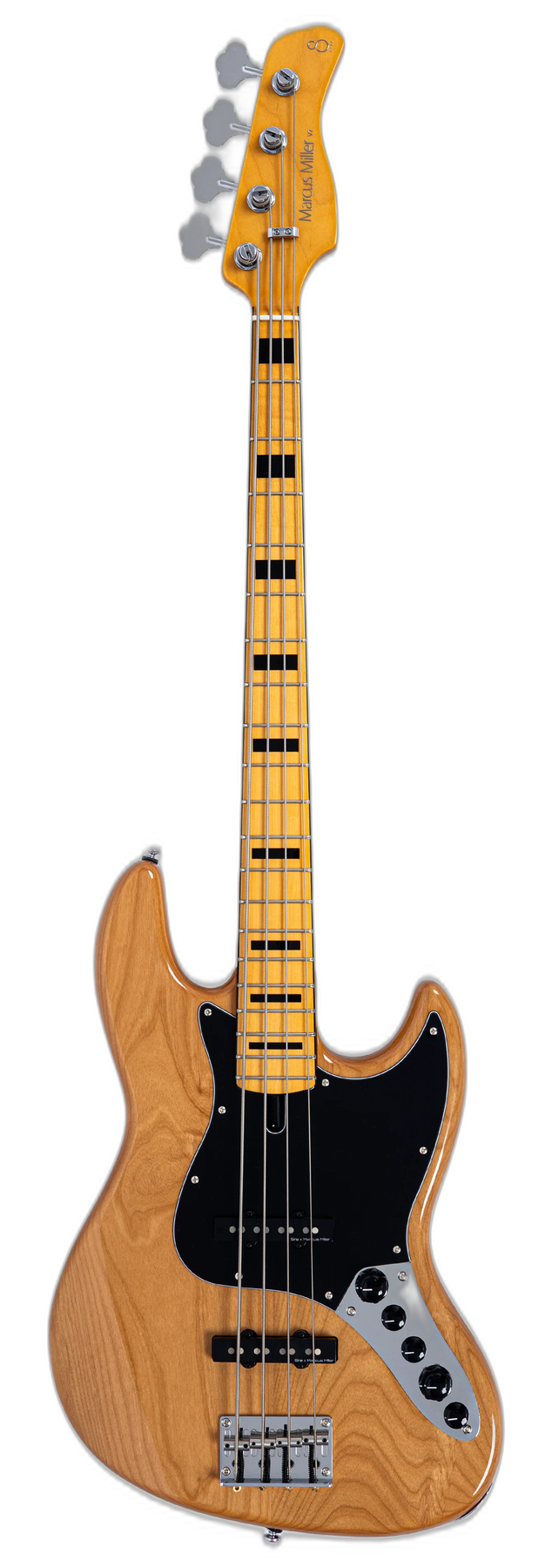

Marcus Miller V7 New Gen 4-String LH

About this model

The First Sire J-Style, Updated with New Gen Refinements The Sire V7 New Gen refines a modern J-style classic with improved playability, balance, and clearer, more responsive tone. Thoughtful New Gen updates deliver greater consistency, streamlined control, and expanded options, making it a more dependable and versatile choice for today’s players.

- Features

- Specification

- Find a Dealer

NEW GEN NECK SYSTEM & IMPROVED INSTRUMENT BALANCE

The V7 New Gen features a revised neck profile with Edgeless™ and Stainless steel frets for improved playability and durability, complemented by lightweight Aluminum tuners for better balance and reduced neck dive, plus Luminlay side dots for enhanced stage visibility.

UPDATED ELECTRONICS ARCHITECTURE & PICKUP TUNING

Configured with newly voiced Marcus Super-J Revolution pickups and a streamlined Heritage-3 preamp, the V7 New Gen delivers enhanced clarity, note separation, and dynamic response while retaining mid-frequency control and push/pull active–passive tonal flexibility.

EXPANDED VARIANTS WITH IMPROVED WEIGHT CONSISTENCY

The New Gen lineup introduces roasted Maple neck options and expanded finish and fingerboard combinations, while tighter weight consistency across production improves predictability and addresses prior variability concerns.

V7 NEW GEN CONTROL LAYOUT

1. Volume Top Knob

Turn toward Open to increase the volume. Turn toward Close to decrease the volume. When turned fully in the Close direction, the volume will be muted.

2. Master Tone — Bottom Knob

Turn toward Close for a darker tone. Turn toward Open for a brighter tone.

3. Pickup Balancer

The center position is the basic position. In this position, both the neck and bridge pickups are used equally. Turn toward Neck to increase the neck pickup signal. Turn toward Bridge to increase the bridge pickup signal. When turned fully toward Neck, only the neck pickup is used. When turned fully toward Bridge, only the bridge pickup is used. Note: The following EQ controls work in Active Mode.

4. Treble

Turn toward Boost to increase the treble range. Turn toward Cut to decrease the treble range. The center position is the basic position.

5. Middle — Top Knob

Turn toward Boost to increase the middle range. Turn toward Cut to decrease the middle range. The center position is the basic position.

6. Middle Frequency — Bottom Knob

Use this knob to select the mid-frequency range affected by the Middle control. Turning the knob changes the selected mid-frequency point. The Middle Frequency control takes effect when the Middle control is boosted or cut.

7. Bass

Turn toward Boost to increase the bass range. Turn toward Cut to decrease the bass range. The center position is the basic position.

8. Active / Passive Push-Pull Control

The Bass knob also functions as the Active/Passive switch. Pull the knob to select Passive Mode. Push the knob to select Active Mode.

BODY

Body Material: North American Alder Body Shape: Marcus Miller Jazz Shape (New Gen) Body Color: TS (Tobacco Sunburst), AWH (Antique White), NT (Natural), CAR (Candy Apple Red)

NECK

Neck Material: Hard Maple (TS, NT) and Roasted Hard Maple (AWH, CAR) Neck Shape: C-Shape (New Gen) Scale: 34" Fingerboard Material: Hard Maple (NT) and Ebony (TS, AWH, CAR) Fingerboard Radius: 9.5" Frets: 2.4 mm Medium, Stainless Fretwire String Nut: Bone Nut, 38mm Width Inlay: White Pearloid Block (TS, AWH, CAR) and Black Block (NT) Binding: IV 1ply (TS, AWH, TP,CAR) and BK 1ply (NT) Neck Joint: Four Bolt Steel Plate

ELECTRONICS

Pickup: Marcus Super-J Revolution Pickup set Preamp: Marcus Heritage-3 with Middle Frequency Control Controls: Volume/Tone, Blender, Treble, Middle/Frequency, Bass (P/P for Passive mode) Knobs: Plastic J-bass Type in Black (New Gen)

HARDWARE

Bridge: Marcus Miller Modern-S Bass Bridge String Spacing: 20mm Tuning Gear: Premium Light Weight Open Gear Hardware Finish: Chrome Pickguard: 3 Ply Black (TS, NT), Tortoise (AWH), Mint Green (CAR)

(function(p,r,o,g,u,s){var a=p.createElement(r);var b=`?shop=sireguitarsusa.myshopify.com&lang=${typeof Shopify!=="undefined"?Shopify.locale:""}&tags=${g}&city=${u}&groups=${s}`;a.src=o+b;a.allowfullscreen=!0;a.allow="geolocation";a.frameborder=0;a.setAttribute("frameBorder","0");a.setAttribute("allowfullscreen","");a.width="100%";a.height="500px";p.querySelector("#progus-store-locator").appendChild(a);window.addEventListener("message",(e)=>{if(e.data.pslheight){a.style.height=e.data.pslheight}})})(document,"iframe","https://sl-widget.proguscommerce.com/main")

Core specs

Brand

Sire

Model

Marcus Miller V7 New Gen 4-String LH

Family

V7

Series

V7 New Gen

Strings

4

Body style

Marcus Miller Jazz Shape (New Gen)

Body material

North American Alder

Top

N/A (no separate top listed)

Neck material

Hard Maple or Roasted Hard Maple (finish-dependent)

Neck profile

C-Shape (New Gen)

Neck joint

bolt-on

Fingerboard

Hard Maple or Ebony (finish-dependent)

Scale length

34"

Nut width

38mm

Fingerboard radius

9.5"

Frets

Unknown

Fret size

2.4 mm Medium Stainless

Bridge

Marcus Miller Modern-S Bass Bridge

Tuners

Premium Light Weight Open Gear

Pickup config

JJ

Pickups

Marcus Super-J Revolution set

Controls

Volume/Tone, Blender, Treble, Middle/Frequency, Bass (P/P Active/Passive)

Electronics

active-passive switchable
